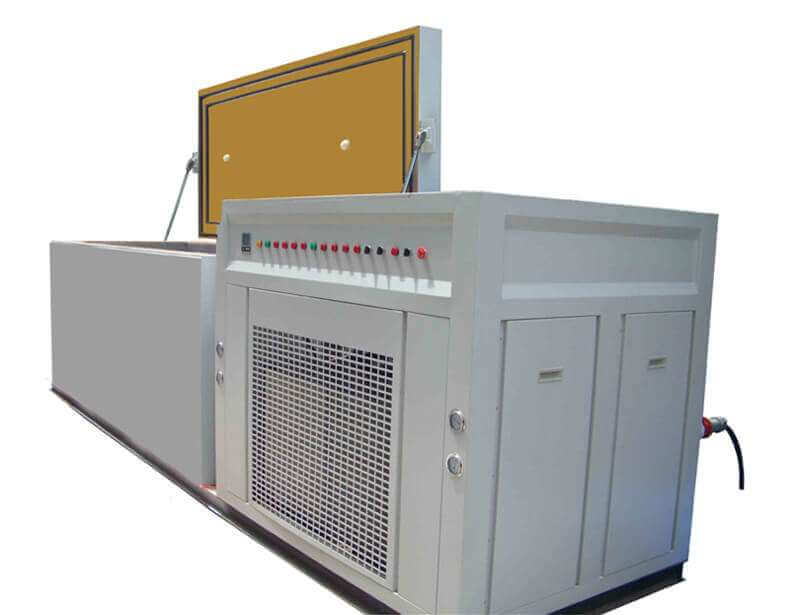

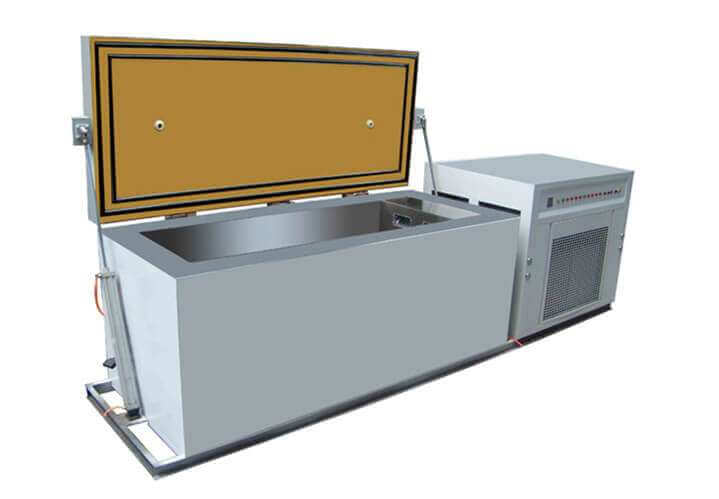

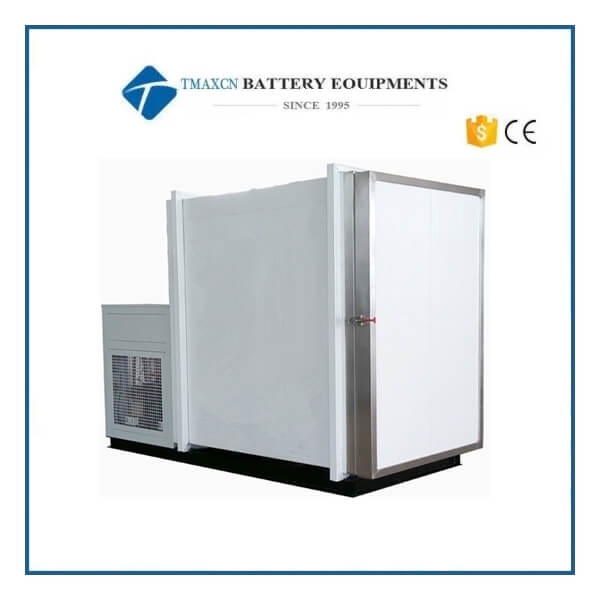

Large Industrial Ultra-low Temperature Refrigerator

Applications

1. It is mainly used to assess and determine the adaptability test of parts and materials of electrical, electronic, aerospace, automobile electrical appliances, materials and other products, electronic components and other related products when they are stored and used in low temperature and constant temperature environment, and test their performance indexes.

2. It is mainly used in the industrial cooling treatment to make the homogeneous, fine and dispersive carbonization products on the metal structure matrix precipitate. The precipitation of this kind of carbide will improve the wear resistance and friction performance of the metal significantly, the hardness will also increase, and will directly improve the life of the wear parts. An ideal alternative to liquid nitrogen.

3. It is used for copper sleeve, bearing and other cold shrinkage, widely used in precision machinery assembly.

4. It is applied to the ultra-low temperature test of large equipment (automobile, large construction machinery, aircraft parts, aerospace equipment parts, military equipment parts).

5. Food preservation and refrigeration;

6. Cold storage of seafood;

7. Can be used as low temperature refrigeration equipment of cold chain logistics distribution vehicle

Features

● Easy to use: the refrigerator door adopts full-automatic valve control, and the door opening and closing are completely controlled by electricity, which is easy and convenient.

● Safety: the panel control is equipped with 4 fault lights, such as valve switch, refrigeration switch, operation and fault. If any part fails, the fault light will be on, and the unit will automatically protect and stop operation without any danger.

● Energy saving: save energy consumption through special compressor system and refrigerator door system, users can use it at ease.

● microcomputer control, cascade temperature controller, digital display of temperature, adjustable unit 0.1 degree, temperature range in the box - 20 degrees to - 125 degrees;

● multiple safety protection, more reliable operation;

● French Taikang compressor, German blog compressor, bizel compressor, binary cascade supercooling technology;

● it has self diagnosis function, refrigerator overload protection, high pressure switch, overload relay, thermal protection device and other safety protection functions to fully ensure the use safety;

Three layer sealing, mold heat breaking layer, super thick polyurethane foam insulation layer, better insulation; embedded vacuum insulation board.

● humanized design, flexible and convenient;

● it is suitable for the environment of mechanical workshop;

● super large condensation design to ensure the cooling effect of workshop environment;

● large volume ratio design; large capacity bearing capacity design;

● it can set the temperature difference between the compressor on and off;

● various fault alarms (overtemperature alarm, sensor alarm, high pressure alarm, compressor overtemperature alarm;

● startup delay protection;

● all parts are grounded safely;

● LED display, which can display the temperature in the box and the set temperature at a glance; it can set the over temperature alarm and the temperature in the box, with the function of fault prompt;

Customized non-standard size, ultra-low temperature freezer (can produce and manufacture ultra-low temperature freezer within - 100 degrees and 100 cubic meters)

● optional color touch screen, temperature recorder and other equipment

SPECIFICATIONS

Model	TMAX-B60-1000L	TMAX-B60-1500L	TMAX-B60-2500L	TMAX-B60-3500L
Volume	1020L	1700L	2500L	3400L
temperature range	-40~-60℃	-40~-60℃	-40~-60℃	-40~-60℃
carrying capacity	500KG	500KG	500KG	500KG
Cooling mode	Air cooling	Air cooling	Air cooling	Air cooling or water cooling
Refrigerant injection	R404A+R23	R404A+R23	R404A+R23	R404A+R23
Chamber size (Width * depth * height)	1000*600*1700	1000*1000*1700	1000*1500*1700	1000*2000*1700
Overall size (Width * depth * height)	1500*1800*2200	1500*2200*2200	1500*2700*2200	1500*3200*2200
Door opening mode	Heavy hinged door, heavy stainless steel door lock
Temperature control	PID temperature control, temperature control accuracy ± 0.1 ℃
sensor	PT100 platinum resistance, ± 100 ℃
Indicator light	Indicator light: power failure light, compressor running light, compressor failure light, fan failure light
Safeguard	Protection: leakage proof air switch, high and low voltage, overvoltage and undervoltage, phase loss, overcurrent, double door seal
Power Supply	Three phase five wire 380V 50Hz
Various specifications and models can be customized according to customers' needs:
1	Loading capacity;
2	Chamber size: length, width, height or overall dimension of parts provided;
3	Time to cool down to the target value under full load.

Related small freezer

Model	Internal dimensions (L*W*H, mm)	External dimensions (L*W*H, mm)	Power	Temperature range	Product features
TMAX-40-50-LA	360*408*405	540*630*1080	315	-15℃~-40℃	Top opening door, with secondary insulation door inside, right angle flat bottom or with step liner, imported microcomputer temperature controller, with sound and light alarm system
TMAX-40-158-LA	460*430*800	700*700*1535	550
TMAX-40-60-WA	390*370*400	520*500*795	300
TMAX-40-100-WA	695*465*300	900*670*795	350
TMAX-40-200-WA	845*465*590	1050*670*795	400
TMAX-40-300-WA	1195*465*590	1400*670*795	450
TMAX-40-568-WA	1755*465*650	1880*670*795	550
TMAX-40-1000-WA	2120*757*670	2265*898*843	900
TMAX-60-50-LA	360*408*405	540*620*1080	400	-25℃~-65℃	Integral polyurethane foam door, stainless steel insulated inner door, imported microcomputer temperature controller, complete alarm system
TMAX-60-158-LA	460*430*800	540*620*1080	600
TMAX-60-400-LA	550*630*1140	700*700*1535	800
TMAX-60-598-LA	700*680*1255	850*930*1945	1200
TMAX-60-60-WA	390*370*400	940*950*1920	350
TMAX-60-108-WA	695*465*300	520*500*795	400
TMAX-60-208-WA	845*465*590	900*670*795	450
TMAX-60-308-WA	1195*465*590	1050*670*795	500
TMAX-60-468-WA	1260*540*670	1400*670*795	600
TMAX-86-50-LA	360*408*405	540*630*1080	400	-40℃~-86℃
TMAX-86-158-LA	460*430*800	700*700*1535	720
TMAX-86-400-LA	550*630*1140	850*930*1945	850
TMAX-86-598-LA	700*680*1255	940*950*1920	1300
TMAX-86-60-WA	390*370*400	520*500*795	400
TMAX-86-108-WA	695*465*300	900*670*795	400
TMAX-86-120-WA	550*400*555	1280*780*980	450
TMAX-86-208-WA	845*465*590	1050*670*795	450
TMAX-86-308-WA	1195*465*590	1400*670*795	500
TMAX-86-468-WA	1260*540*670	1920*800*1070	700
TMAX-136-120-WA	550*400*545	1280*780*980	2300	-80℃~-136℃
TMAX-153-120-WA	550*400*545	1280*780*980	3800	-110℃~-153℃
TMAX-165-120-WA	550*400*545	1280*780*980	4800	-120℃~-165℃
TMAX-180-120-WA	550*400*545	1280*780*980	8500	-140℃~-180℃
